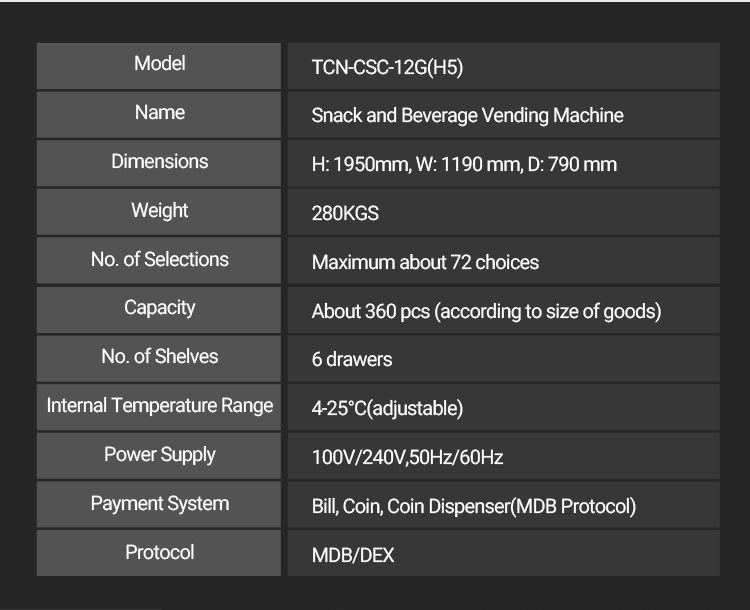

Quantity
|
About 72 Choices
|
Type
|
Spiral/conveyor /Pusher
|

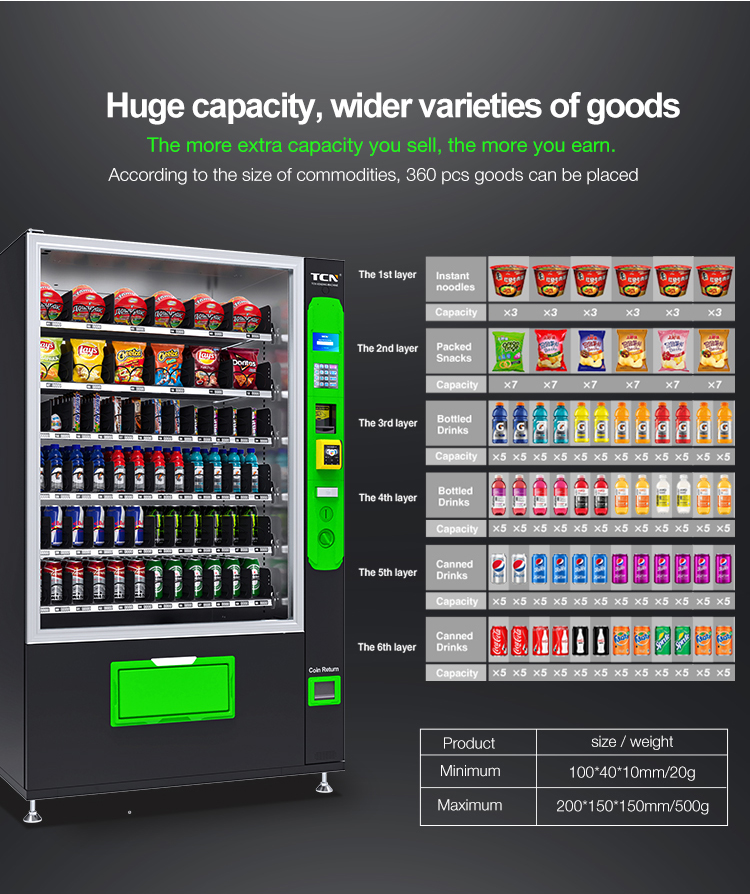

Capacity
|

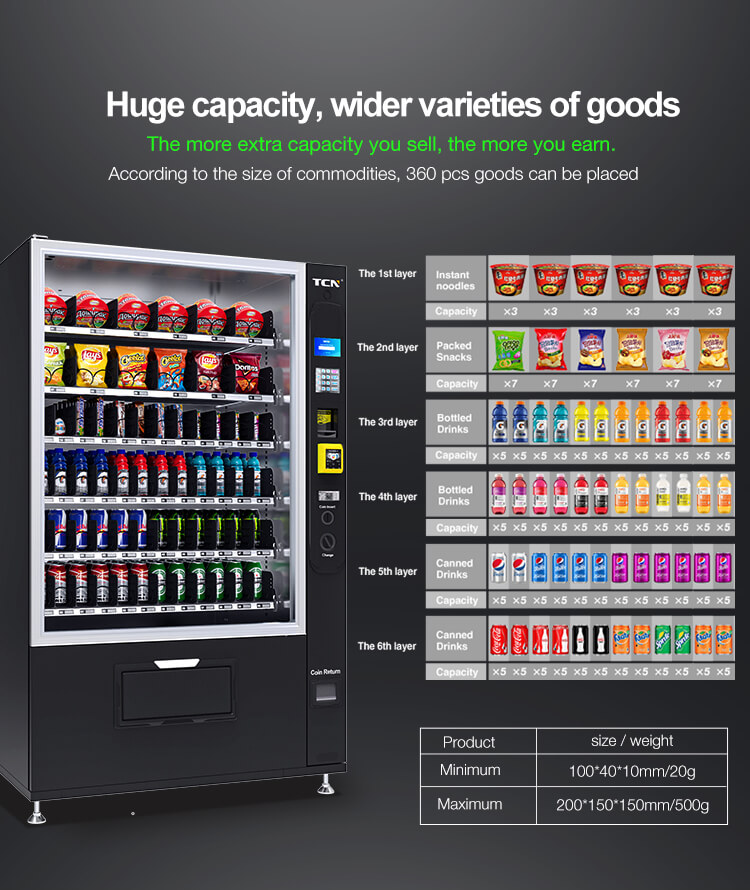

All beverages 360 pcs
|
Suitable for
|
Beverages, Snacks, Combo
|

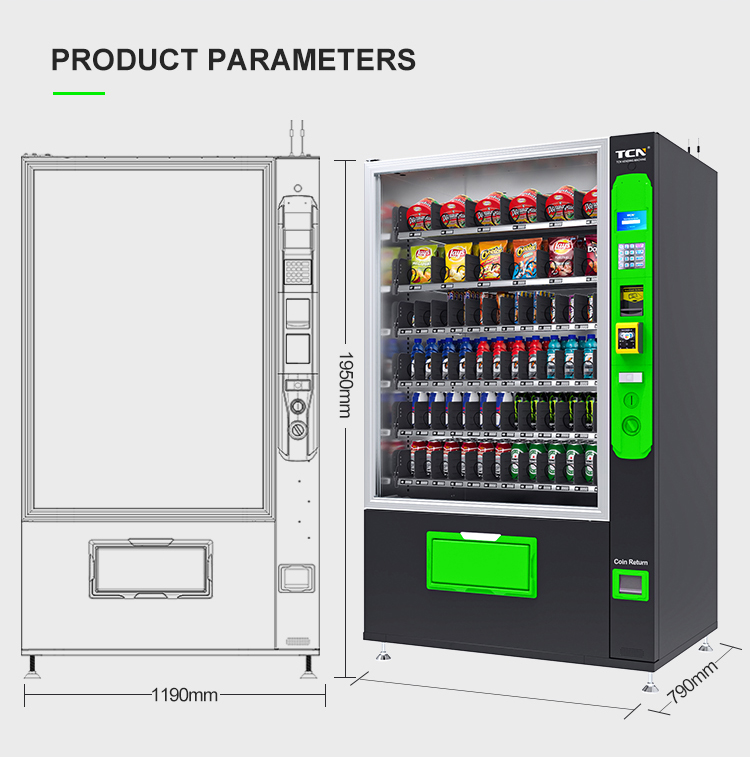

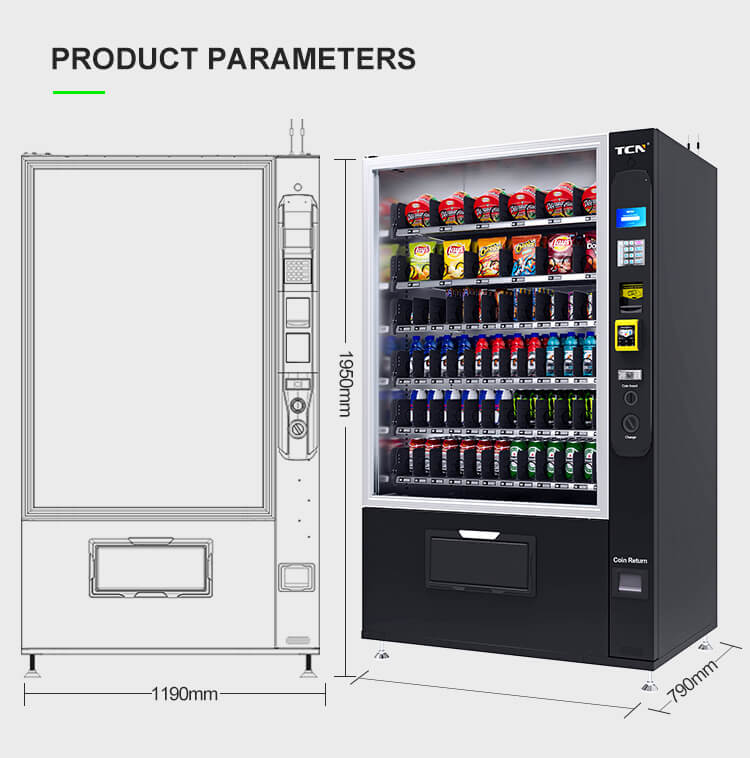

Dimension
|

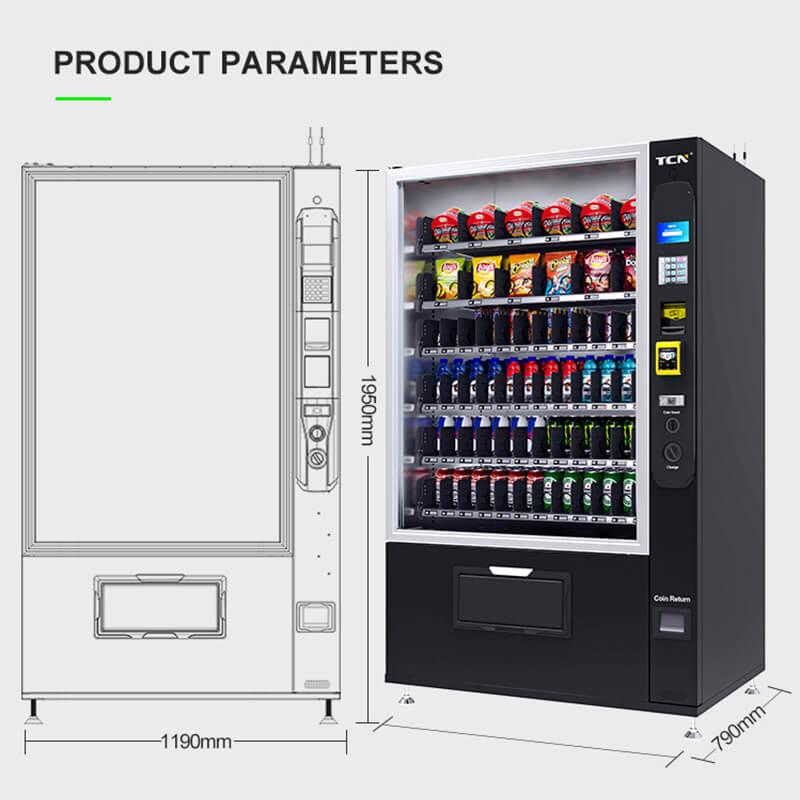

H:1950mmW:1190mmD: 790mm
|
Screen
|
5 inch LOD sceen
|
Voltage
|
AC110V~120W/220V~240V50/60Hz
|
Power
|
Refrigerated 422WNormal 24W
|
Weight
|
280KGS
|
Temperature
|
2~25°C adjustableOptianat: dra heating mnodule
|
Payrment methods
|
Bill,coin,Cashless payment
|
Support |
Credit/DebitCard: VISAMaster CardyAMEXEwallet: Aipay/Momyx/Apple pay/Google Pay/Samsung Pay
|
TCN vending machines can support international MDB,DEX standard ,can meet all kinds of international standard .
Overall foaming technology,firmer and better temperature insulation.
Add support bar and front end of spring for delivery smoothie.
Adopt import payment system like ICT,ITL,MEI,NRI,NAYAX,INGENICO.

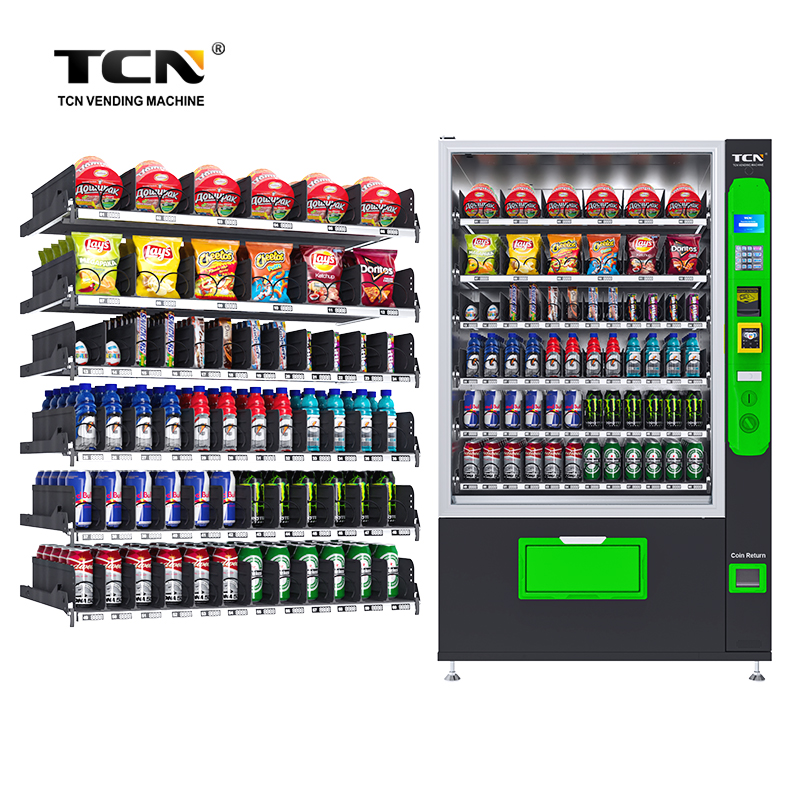

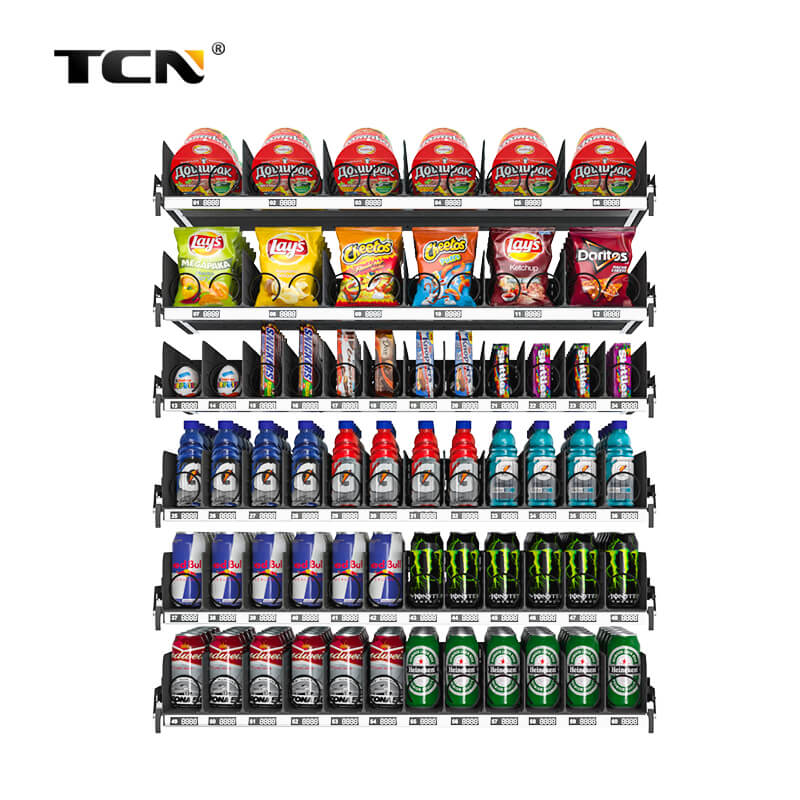

Spring coil ,belt conveyor,spring hook slot be widely used for different products.
Remote management system can be used for free and provided with managing machine operation status ,feedback failure,monitoring running, remote price changing.

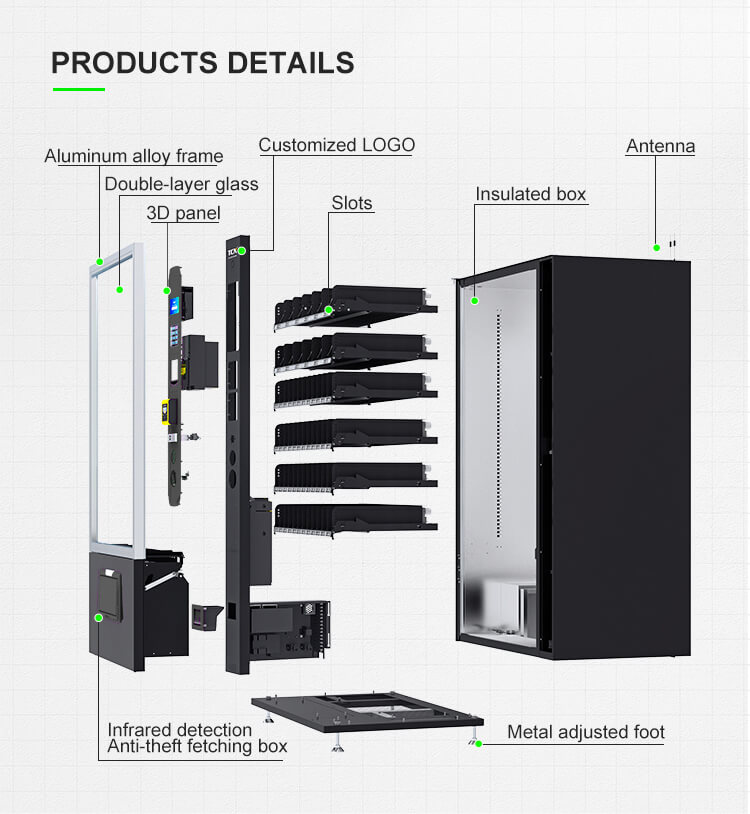

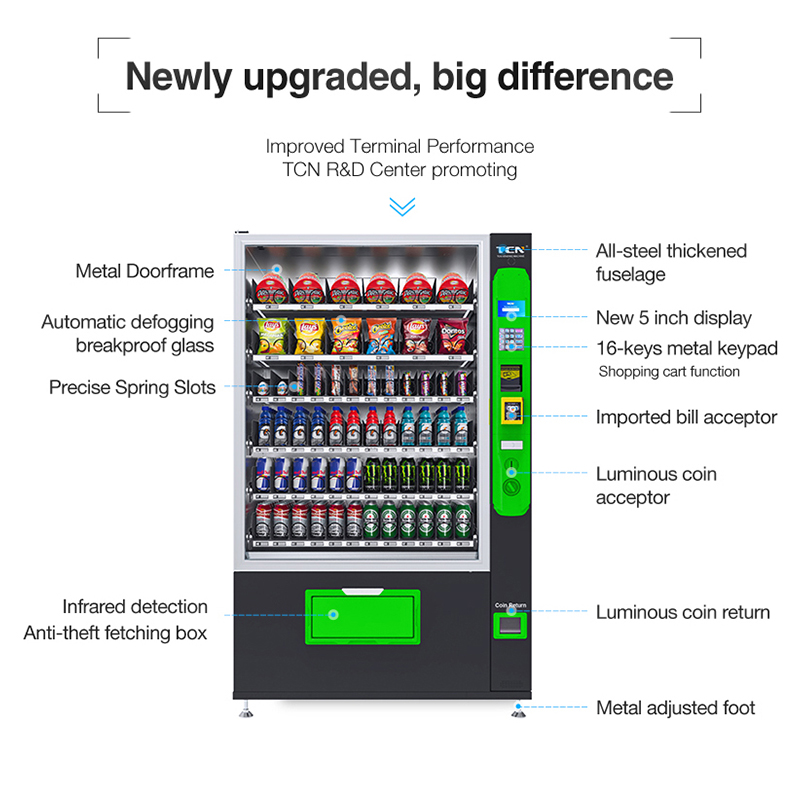

1.High strength & powder coated cabinet with fully insulated material, energy efficient vending unit.
2.Secure door with wrap-around enclosures and LED lighting.
3.Triple glazed viewing window.
4.Dual spirals on chip trays.
5.Each tray tilts down 45 degree for fast & easy loading.
6.Adjustable tray partition and height.
7.Secure /lockable cash box.
8.With temperature sensor (4 to 25 degrees Celsius adjustable) Modular cooling system, easy to maintain.
9.With drop sensor/Vend Assure TM / vend sensors/guaranteed delivery system. (holds credit until product is delivered).
10.GPRS remote monitoring system, delivers real time live information.
11.Glass Heater embedded on glass to prevent condensing of moisture.
12.Excellent capacity and size ratio.
13.Flexible layout for snack,fresh food,cans and bottles.
14.Energy efficient compressor,etc.
15.Cooling system with R134a、R290、R513A R1234YF refrigerant,can meet the ROHS requirement.
16.Overall foaming technology,40mm formed,firmer and better temperature insulation.
Payment System:
1.IC card, ID card, voice control, bank card, credit card, QR code, bank note. coin, bill,mobile pay system, NFC card.
Suitability:
Cafes,Canteens,Hospitals,Hotels,Schools,Subway,Supermarket,Malls,meeting rooms,stores,professional studios,waiting rooms etc.
TCN Remote Management System
TCN Remote Management System is a cloud-based web manageability service
that can be accessed from anywhere on any compatible devices including PC, smart phones, tablets and so on to remotely manage and monitor your clusters of vending machines in disperse locations.
With TCN remote management system service, the vending operators can manage their vending machine in more efficient and profitable manners, benefited from the comprehensive and easy-to-use features with real-time data, such as centralized inventory management, consolidated sales management and tracking, cash collection trace ability, stock replenishment management. All of these means less loss, less cost, more efficiency, and more profits.
OEM/ODM service can be provided.
Competitive Advantage:
1.More than 100 R&D engineer.
2. More than 200 national patents.
3.21 years for vending machines.
4.200,000 square meters workshop .
5.Large production capacity more than 300,000 units.
6.Large cost advantage.
7.International automatic assembly line.
8.Professional after-sales service team.
9.Imported high-performance compressor,bill and coin payment system.
10.Strong TCN management system and there is no annual fee.
